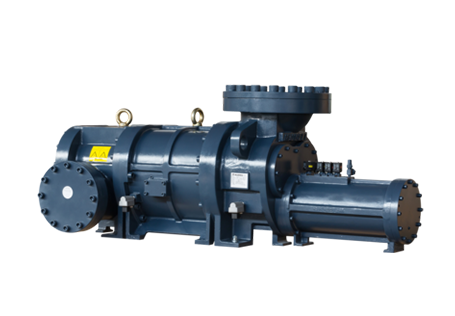

Hanbell RG series open type compressor is a multi-functional compressor which is compatible with ammonia, fluorine and special gases, with high efficiency spiral rotor teeth. It has adjustable VI value between 2.6 -5.6, adopts floating energy-saving hole, and has higher efficiency and higher energy efficiency ratio. Its balance piston design makes it more reliable in use. RG open type compressor can meet different application requirements.
Product Information
Click here for more information
It can compress a variety of refrigerants including R22, R717, R134a, R502, R507, R170 (ethane), R290 (propane), R1150 (ethylene), R1270 (propylene), RE70 (dimethyl ether).
The rotor profile adopts Hanbell special 5-6 tooth shape, high volumetric efficiency, low leakage and long service life.
Adopt a famous British brand in the industry, John Crane.
SKF, a famous brand in the industry, is used to meet the demand of super long life.
It can realize 25%~100% stepless adjustment, or four stage adjustment (some models). It can provide cooling capacity according to user's demand and save electric energy.
It can realize 2.6~5.6 stepless manual adjustment; RG1150 ~ 2850 volume ratio can realize automatic adjustment; Some models, the volume ratio slide valve is also optional (according to the model), which meets the needs of users under different working conditions, and always runs efficiently and smoothly.
Model | RG-200 | RG-410 | RG-620 | RG-830 | RG1270 | RG1800 | RG2280 | RG2850 | |
Displacement(50Hz) | m3/h | 190 | 402 | 619 | 816 | 1264 | 1761 | 2270 | 2851 |
Rated speed, max | Rpm | 4500 | 3600 | ||||||
Rated speed, min | Rpm | 1500 | |||||||
Range of capacity control | 25%~100% | ||||||||
Range of VI adjustment | 2.6~5.1 | 2.6~5.6 | |||||||
Weight | kg | 232 | 320 | 475 | 513 | 1166 | 1600 | 1720 | 1900 |
